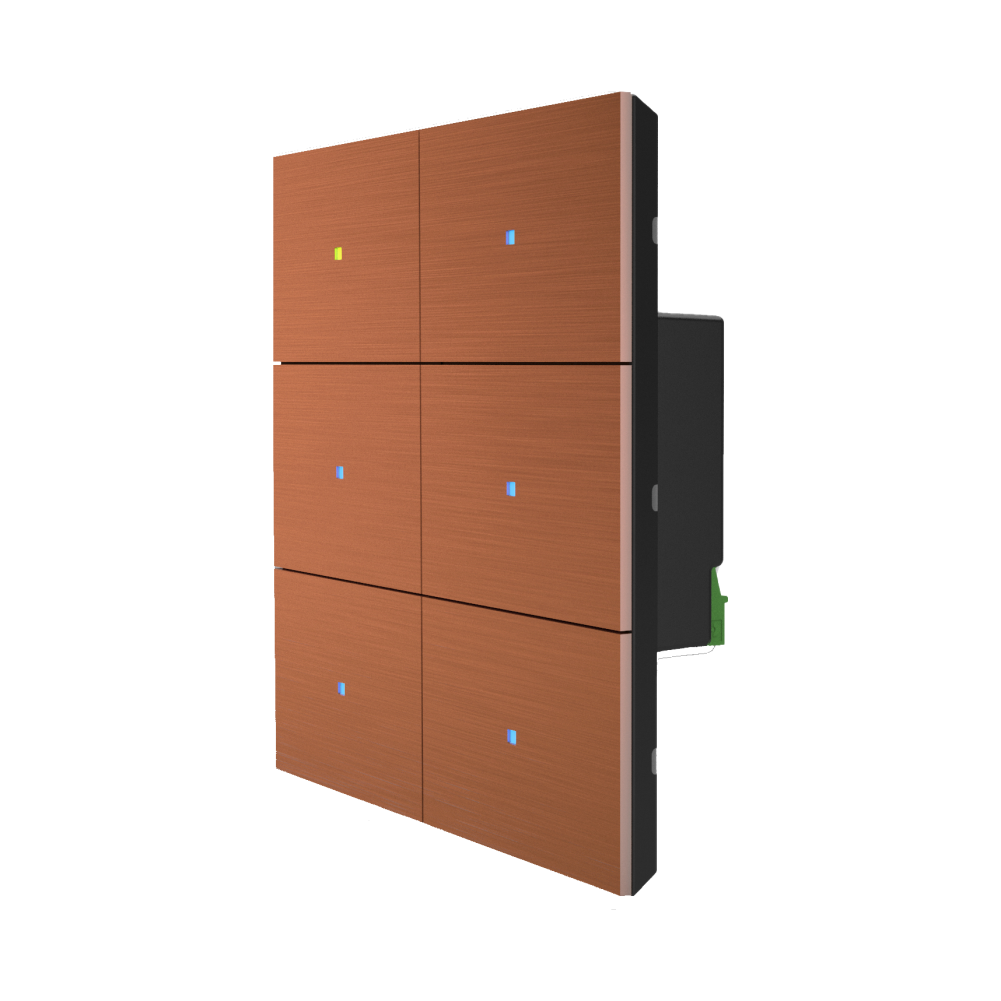

Unirro-KNX
Unirro-KNX

Keypad Item Code: BAS1047

UOM : Nos
Out of stock
  1. Capacitive Touch Buttons.
  2. Multi Color LED indicators.
  3. 4 Digital Inputs.
  4. Dual Actions for each of the Button.
  5. Step Switch for multiple operations from Single Button.
  6. Configurable Guest Room Service Calls functions like DND, MMR and Laundry.
  7. Configurable Visitor Door Bell Function.
  8. Configurable Nurse Call Functions.
  9. Configurable Indicators and Sounder.
  10. Array of Stylish Swappable Fascia in Glass, Metal and Wood.
  11. Compatible with Unirro Bluetooth Remotes*.
  12. Sleep Mode to dim down LEDs.
Product Details
Parameter Description
Voltage 30VDC SELV , KNX
Maximum Current Consumption 15mA
Connection Type Typical TP1 bus connector for 0.80mm Ø rigid cable
External power supply Not required
Operation temperature 0°C .. +55°C
Storage temperature -20°C .. +55°C
Operation humidity 5 .. 95% (Non-condensing)
Storage humidity 5 .. 95% (Non- condensing)
Degree of protection IP20, clean environment
Installation Flush mount on standard 2M electrical box.
PCB CTI index 175V
Housing material ABS
Enclosure dimension (l x w x d mm) 90 x 90 x 26
Number of inputs 4
Inputs per common 4
Operation voltage +3.3VDC in the common
Operation current 5 mA @ 3.3VDC (per input)
Switching type Dry voltage contacts between input and common
Connection method Pluggable screw terminal block
Cable cross-section 0.2-1.5mm² (IEC) / 28-14AWG (UL)
Maximum cable length 30m
