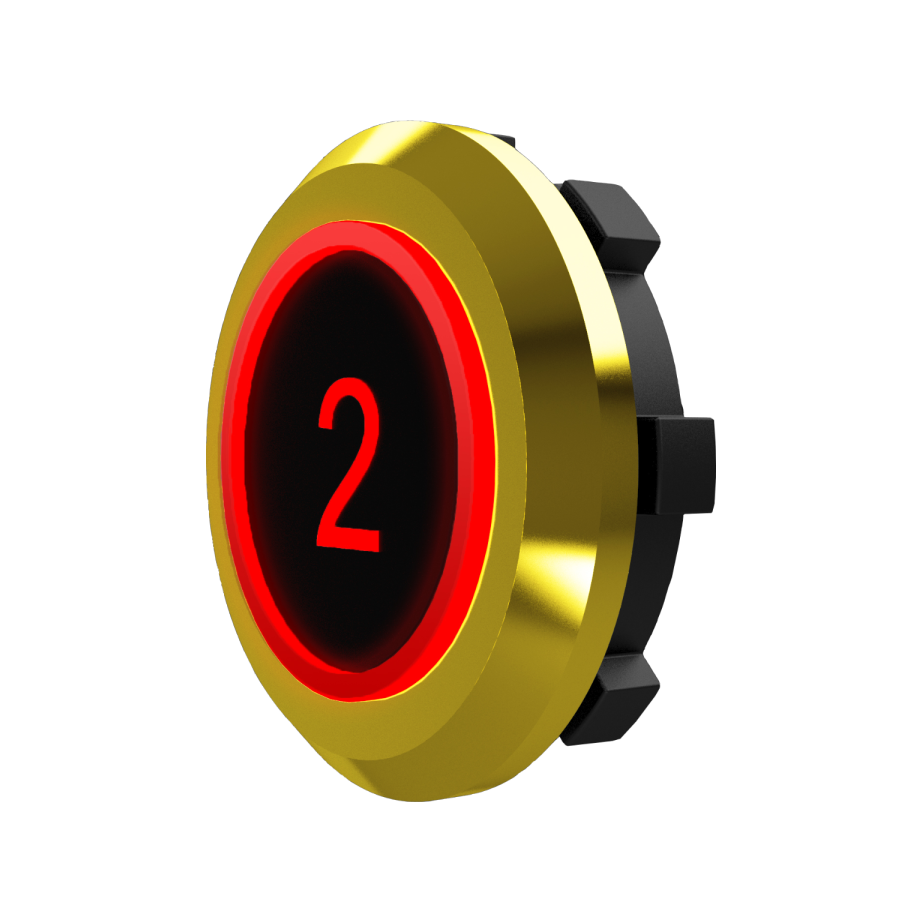

Elcove Contactless Button for Elevator
Elcove Contactless Button for Elevator

WooCommerce Products Item Code: COMP0045

₹ 600,000.00 INR (₹ 600,000.00 / Nos)
Out of stock

Part Number:


EOS0002-XX-10-10-01-RLY-V3


EOS0002-XX-20-10-01-RLY-V3


Bezel Shape (XX)


Round (10)

Square (20)

Category: Keypad


  1. Proximity Sensor for “No Touch” operation.
  2. 10-15 mm sensing distance.
  3. LED indication.
  4. Relay Output.
  5. Digital Input.
  6. ABS enclosure.
  7. Available with Braille Marking


Product Details
Parameter Description
Number of Outputs 1 Potential Free Relay Output
Number of Inputs 1 Digital Input
Indication 1 LED Indication (Options: Red, Blue, Green)
Operating Voltage 10 – 24V DC
Installation Surface Mounting in cutout. Min. = 32mm, Max. = 40mm
Dimension (w x d) 44 x 6.5mm front of the panel, 12.5mm behind panel
Housing Material ABS
